YT-01
發布時間：2018-10-10 瀏覽次數：21343 產品分類：射頻識別清點設備 發布時間：2018-10-10 瀏覽次數：21343產品分類：射頻識別清點設備
產品名稱：YT-01
產品屬性：
產品規格：
產品屬性：
產品屬性：
該系統結合傳統輸送帶列隊、分揀的功能，配合RFID射頻掃描對整箱貨物進行判別，可快速對出庫、入庫的產品進行整箱盤點，并根據盤點結果進行分揀流轉。
若是獨立使用該組系統，工人可將貨箱抬至緩沖臺，依靠緩沖臺的萬向滾珠輕松將紙箱推入輸送帶；若是將該組系統結合運用于現有傳送帶，將列隊輸送帶部分直接接入現有系統即可
該設備適用于所有已經貼上RFID標簽的非金屬貨物，實現出、入庫的快速點選，節省了大量的人員和時間，可以與公司物聯網系統進行對接，即為RFID+互聯網，讓公司對產品的整個生命周期進行全程監控。
該設備特別適用于服裝、化妝品、藥品等單值較大且大宗的商品。

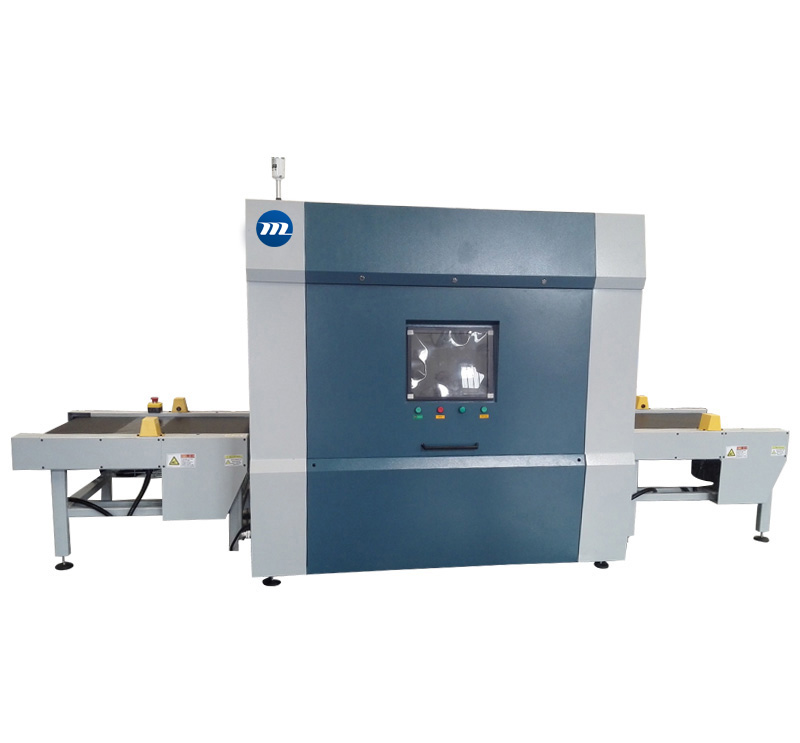

Combined with the functions of traditional conveyer belt procession and sorting, the RFID Conveyor?with RFID radio frequency scanning to identify the boxes of goods, and can quickly count the products out of the warehouse and in the warehouse, and carry out sorting and circulation according to the inventory results.
If the system is used independently, the worker can lift the container to the buffer table and easily push the carton into the conveyor belt with the universal ball bearing of the buffer table. If the group system is applied to the existing conveyor belt, the part of the conveyor belt can be directly connected to the existing system.
RFID Conveyor?is applicable to all non-metal goods that have been tagged with RFID. It can be used to realize quick point selection for delivery and storage, which saves a lot of personnel and time. It can be connected with the company's Internet of things system, namely RFID+ Internet, which enables the company to monitor the whole life cycle of products.
RFID Conveyor?is especially suitable for large and large quantities of commodities such as clothing, cosmetics and medicines.
|
? |
||
|

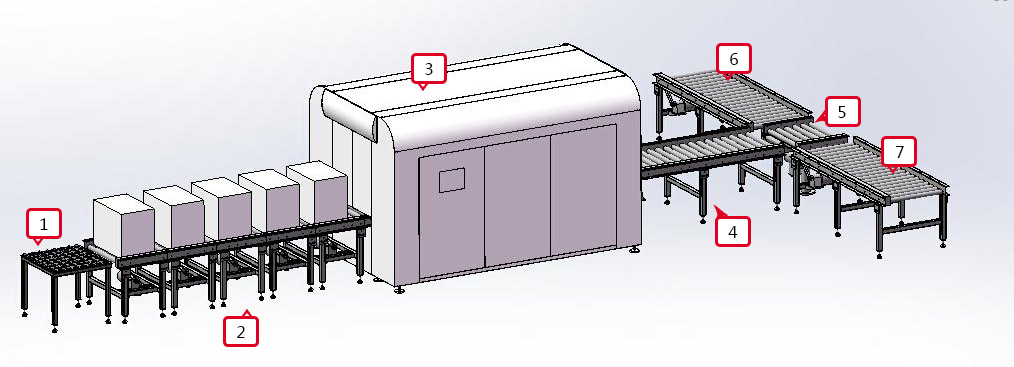

模塊 |
||
|
1 |
緩沖臺 |
供人工投擲紙箱，推入輸送機用 （可選配） |
|
2 |
列隊輸送帶 |
紙箱將在該區域等待進入RFID箱 |
|
3 |
RFID屏蔽箱 |
RFID超高頻快速感應箱，配輸送帶、觸摸監控屏及橫向開合門 |
|
4,6,7 |
輸送帶 |
傳輸用 |
|
5 |
旋轉臺 |
根據RFID讀取結果進行紙箱分揀 |
?
|
產品適用性 |
|
|
緩沖臺 |
最大載重≤65kg |
|
輸送線 |
紙箱尺寸≤400*500*600mm ?重量≤35kg ?單箱標簽數量≤150枚 |
|
旋轉臺 |
360°轉角 |
|
運行效率 |
|
|
效率≥350箱/小時 ?(單箱處理耗時≤10s) |
|
|
外觀尺寸 |
|
長度：10000mm寬度：1900mm高度：1900mm 屏蔽箱尺寸：3000*1900*1900mm ? |
|
Modules |
||
|
1 |
Cushion Table |
Carton feeding station, for manual use only ( Optional ) |
|
2 |
Buffer |
Cartons queuing up here and wait to be pulled out to the next section |
|
3 |
RFID Shielding Box |
RFID Detection System, incl. Conveyor belt, Touch Monitor and Auto Sliding Door |
|
4,6,7 |
Output System |
Cartons Output |
|
5 |
Redirect System |
Redirect Cartons to pre-defined sections under RFID detection result |
|
?Products |
|
|
Cushion Table |
Max Load.≤65kg |
|
Conveyor |
Carton Size≤400*500*600mm ?Weight≤35kg ?Tags/Carton≤150pcs |
|
Redirect System |
360°Rotation |
|
Performance |
|
|
UPH≥350 Cartons/h（Unit process time≤10s） |
|
|
Dimensions |
|
Length：10000mm ?Width：1900mm ?Height：1900mm Shielding Box：3000*1900*1900mm |
